Product Gallery
See Every Detail

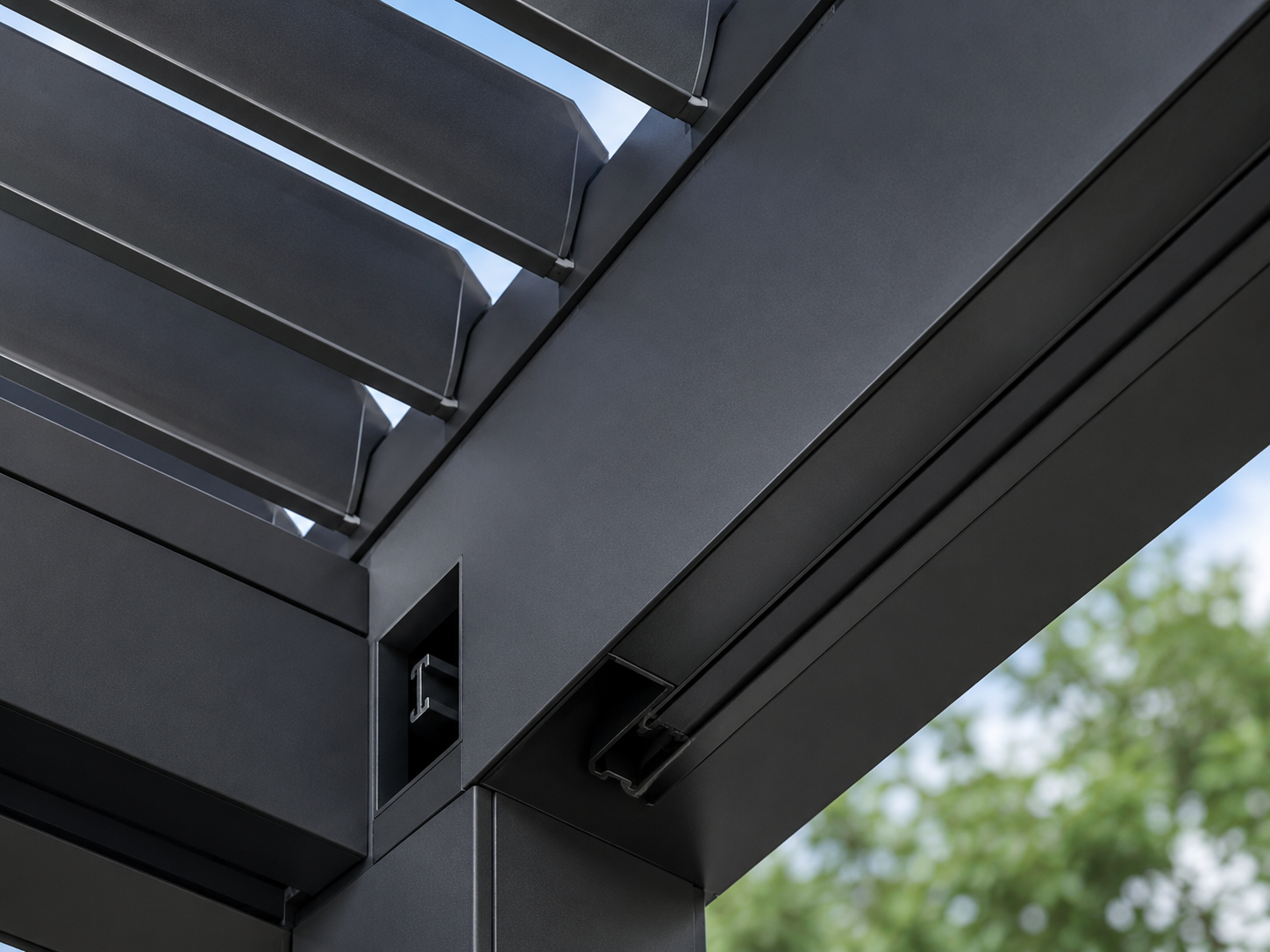

High-resolution photography of our aluminum pergola system - from full installations to precision component details.
Engineered motorized louvered roofs with integrated LED lighting, hidden drainage, and smart control - designed for architects, hospitality groups, and discerning homeowners.
Get a QuoteOur aluminum louvered pergola system represents the intersection of precision engineering and refined aesthetics. Manufactured from 6063-T6 aluminum alloy with AAMA 2604-compliant powder coating, every component is designed to perform in the harshest climates while maintaining its architectural finish for decades. Whether you're specifying for a 5-star resort terrace, a high-end residential patio, or a commercial restaurant expansion, this system delivers the structural integrity, weather resistance, and visual impact that premium projects demand.
High-resolution photography of our aluminum pergola system - from full installations to precision component details.
Watch the motorized louvers open and close, integrated LED lighting transform the space, and the hidden drainage system handle heavy rain - all in under 2 minutes.
Six engineering and design advantages that make our aluminum pergola the specification of choice for premium projects.

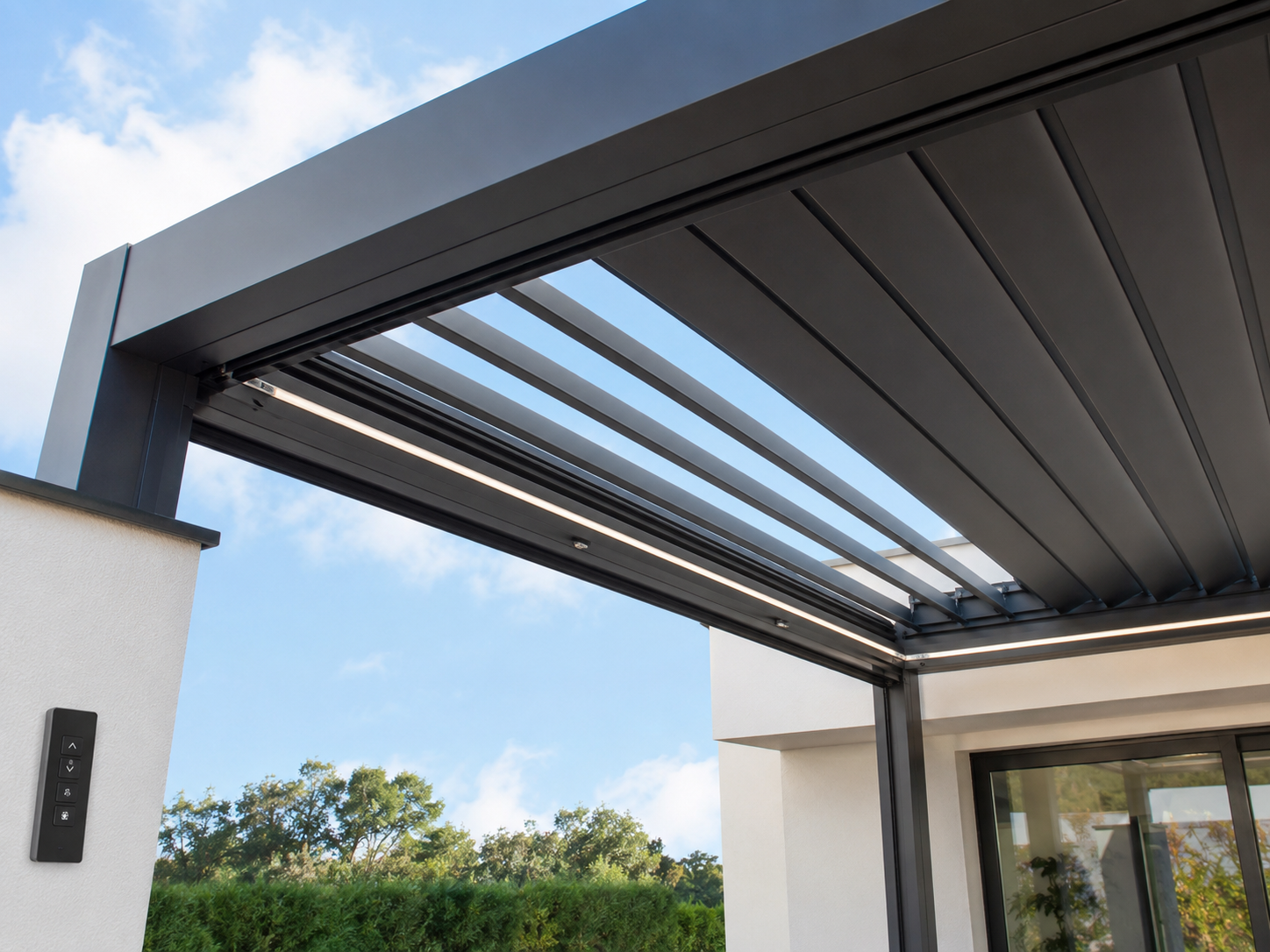

0-130 degree rotation range with Somfy/Dooya motors. Rain sensors auto-close blades. Whisper-quiet operation under 38dB.

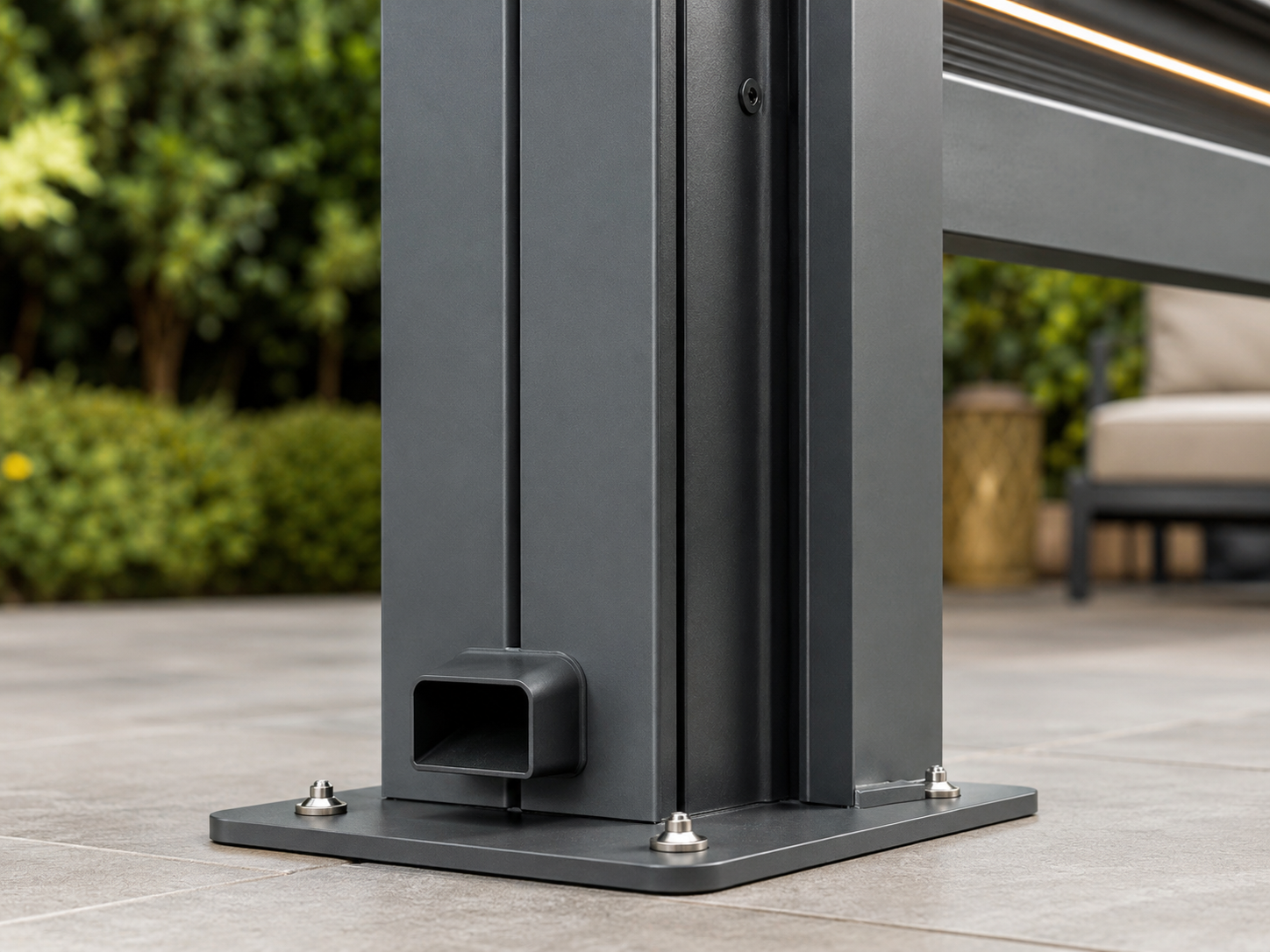

Hidden gutters channel rainwater through the post cavities. 120L/min drainage capacity handles tropical downpours. No external downpipes.

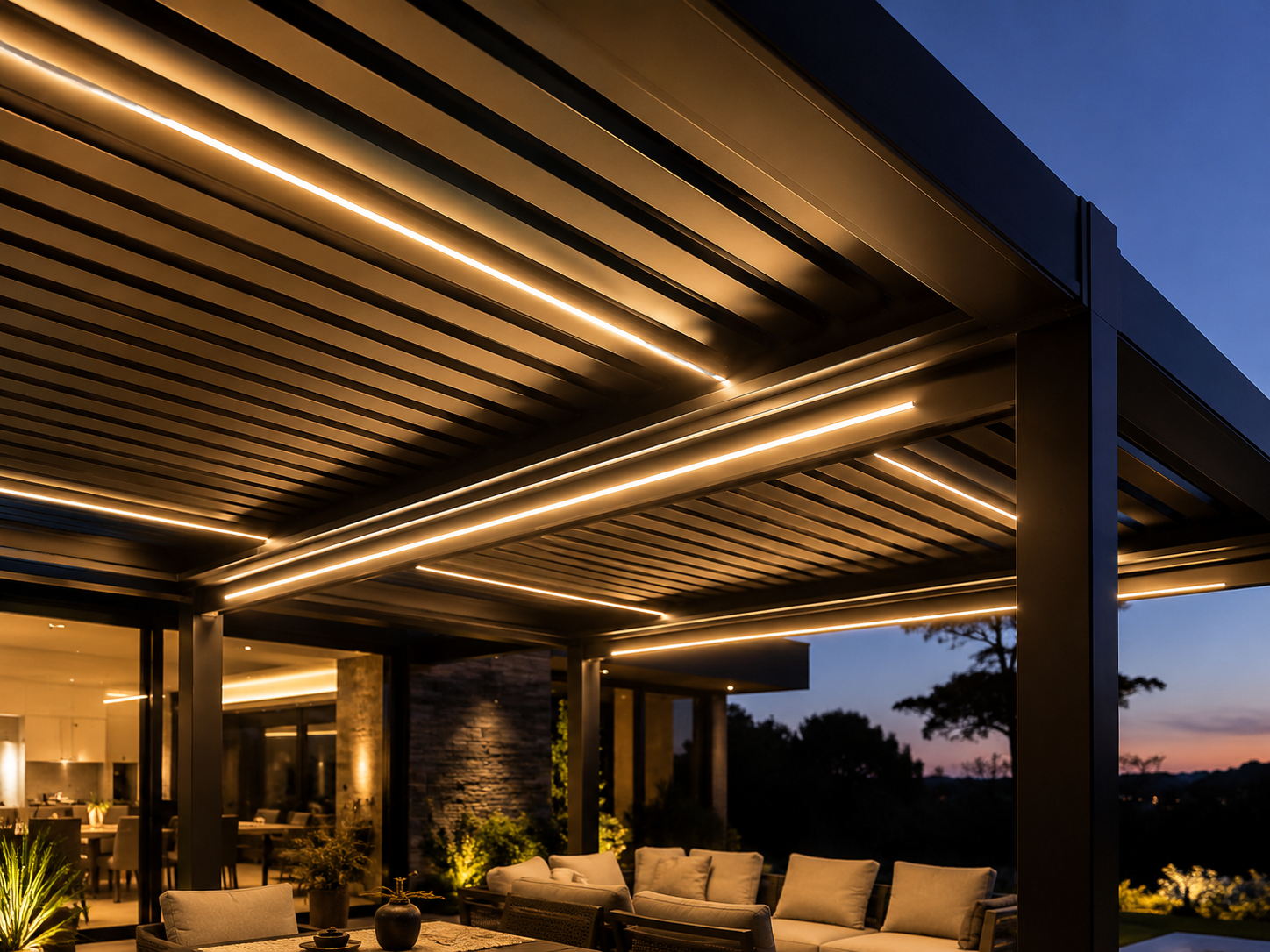

24V IP67 waterproof LED strips integrated into louver channels. RGB color + 3000K warm white. App-controlled zones and scenes.
EN 13561 Class 6 wind rated. 0.5 kN/m2 standard snow load. -40C to +80C operating range. Coastal-grade 316 stainless hardware.
20+ RAL powder coat colors, wood-grain texture, anodized finishes. AAMA 2604 certified with 10-year color retention warranty.
Control via remote, wall switch, mobile app, or voice. Auto-responds to rain, wind, temperature, and sunlight. Works with Alexa & Google Home.

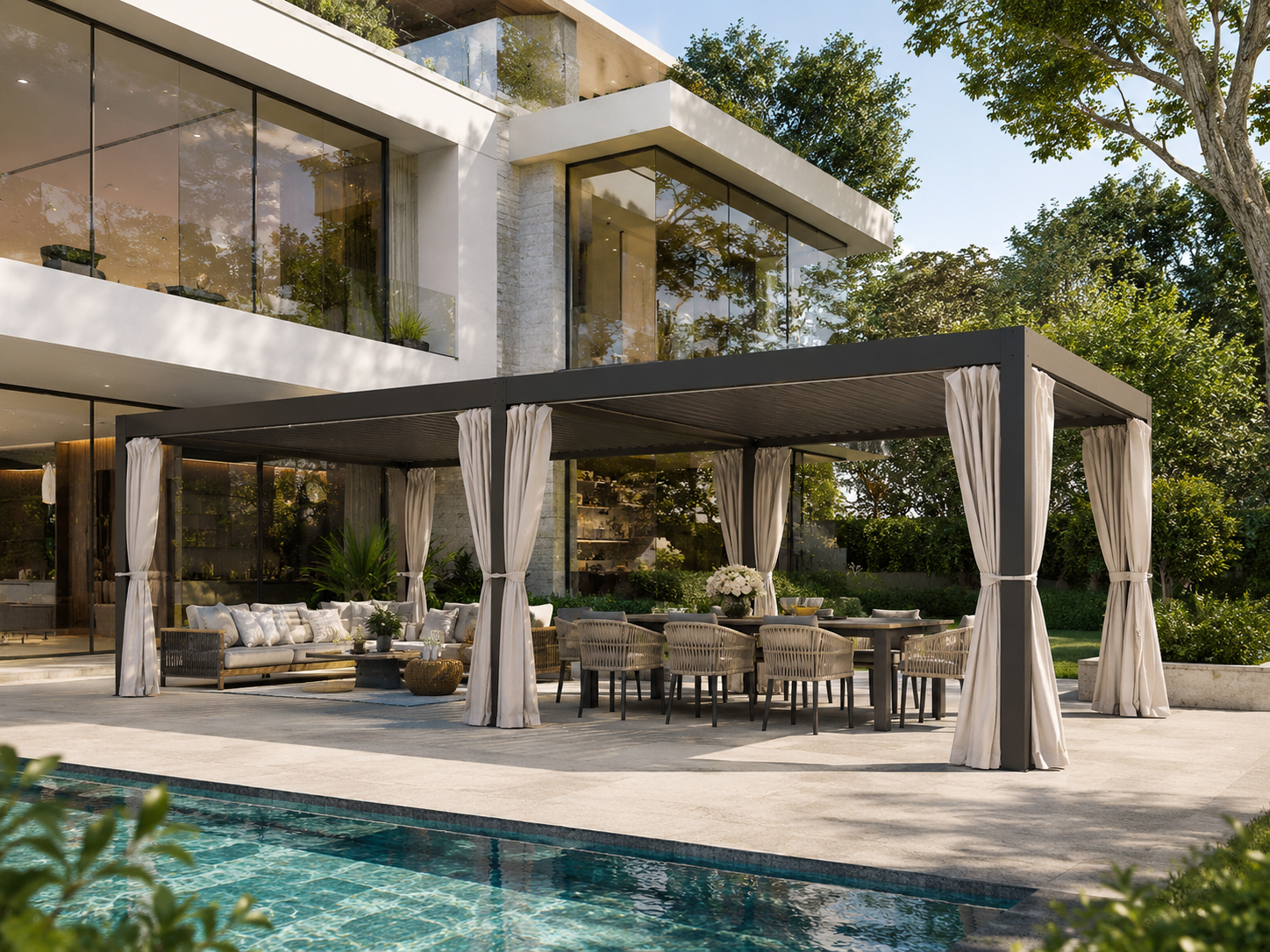

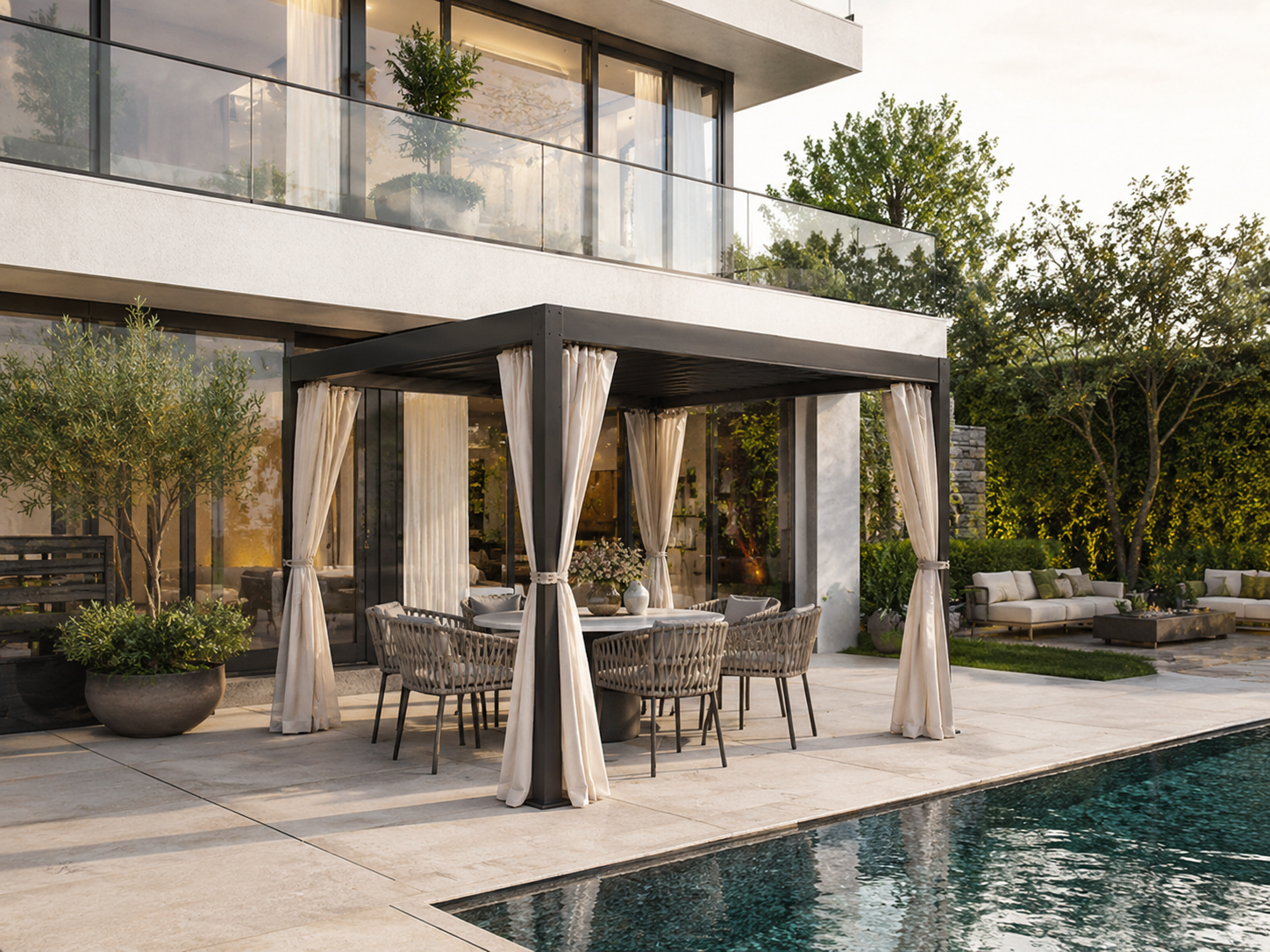

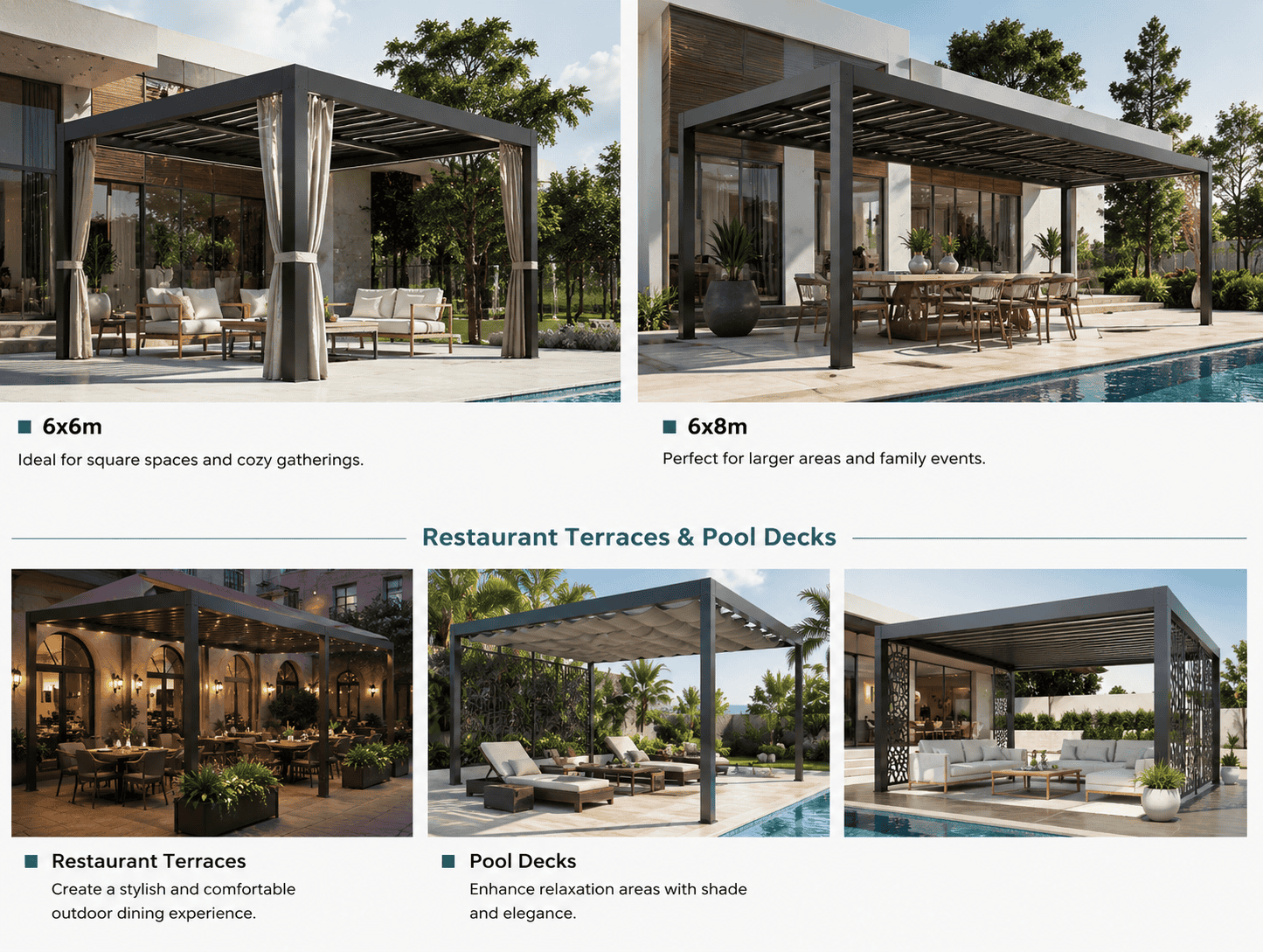

Standard and custom sizes available - from compact residential installations to expansive commercial multi-unit configurations.
AAMA 2604-compliant architectural powder coating. 20+ standard RAL colors plus custom matching. Wood-grain texture and anodized finishes available.

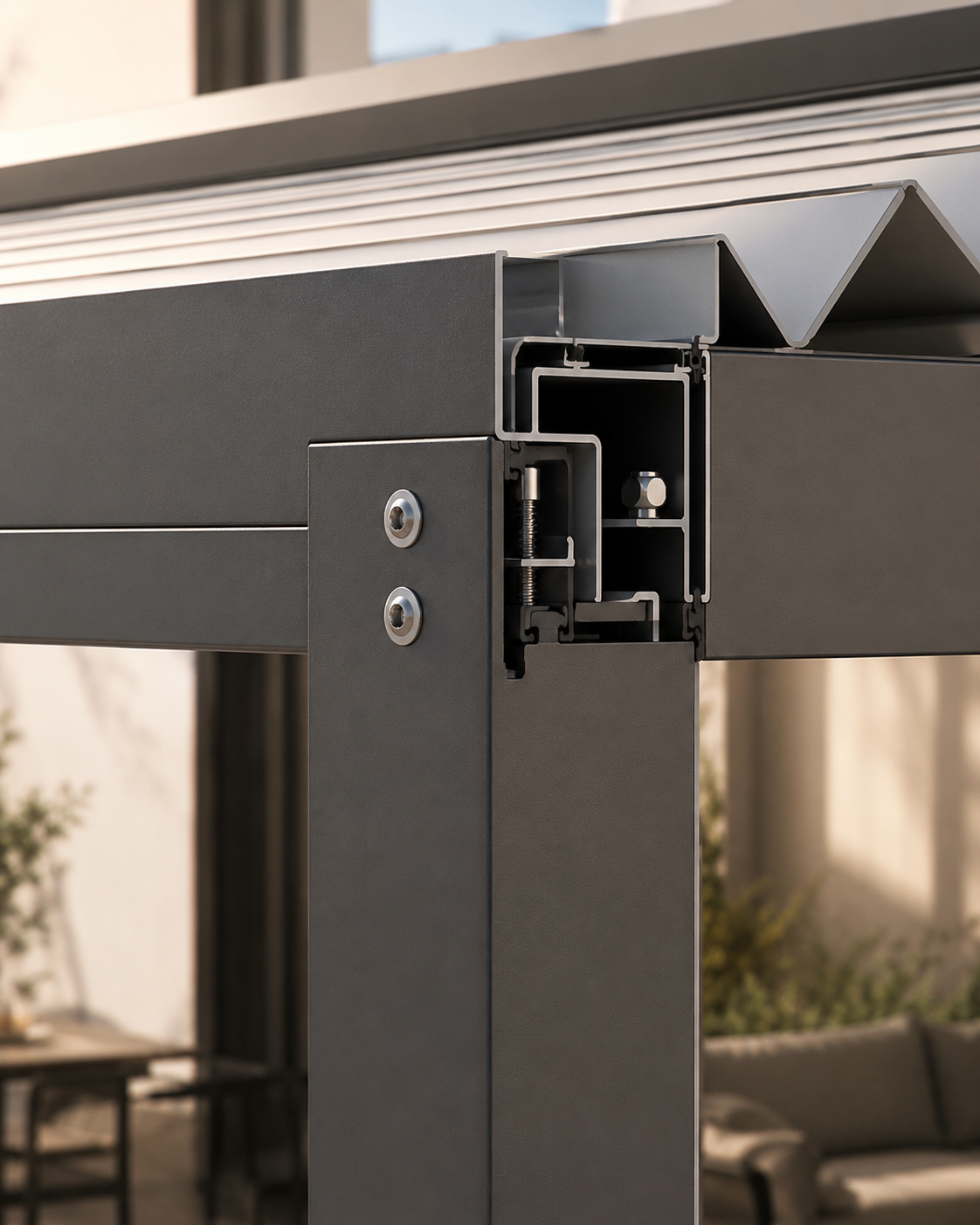

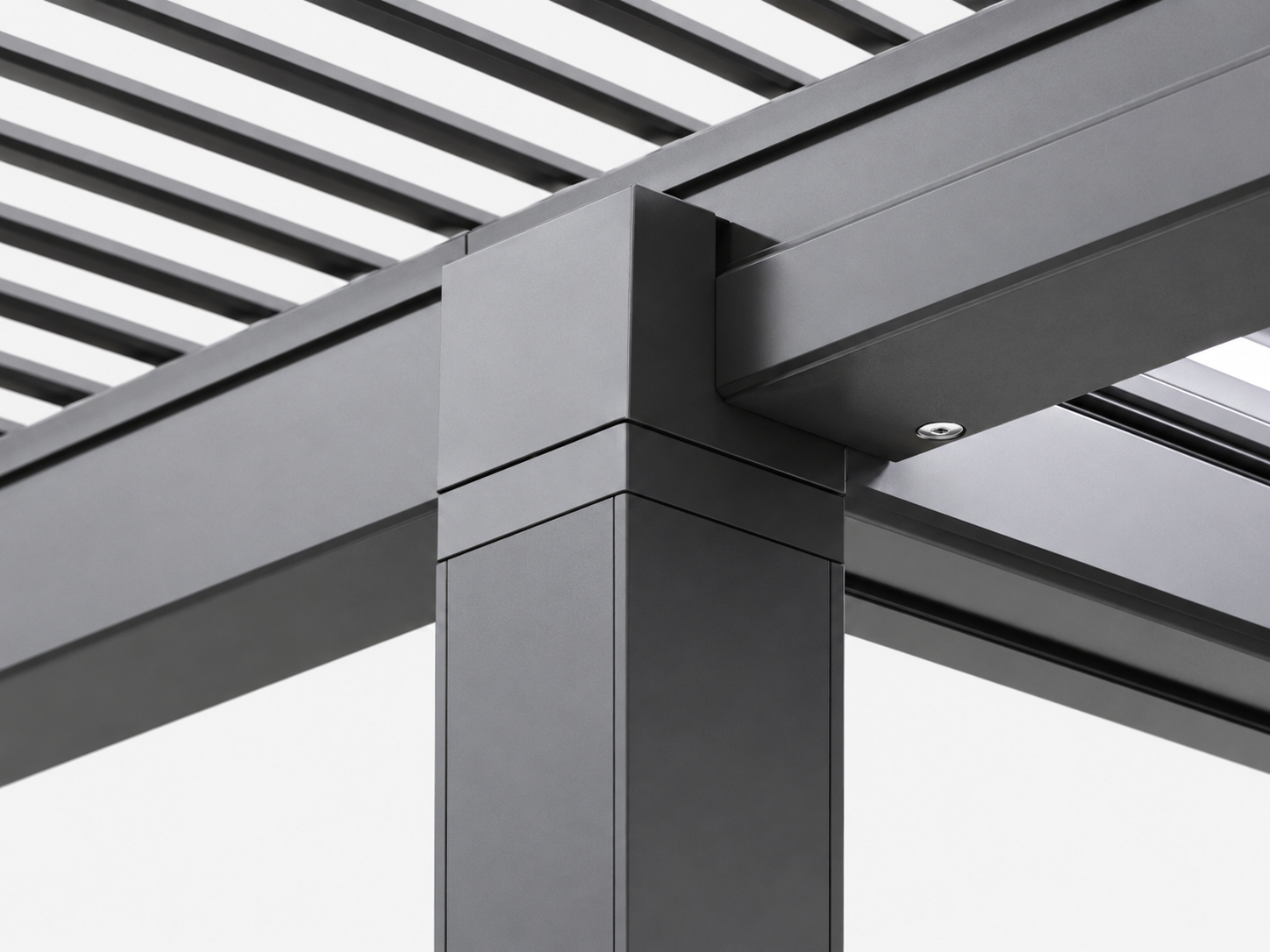

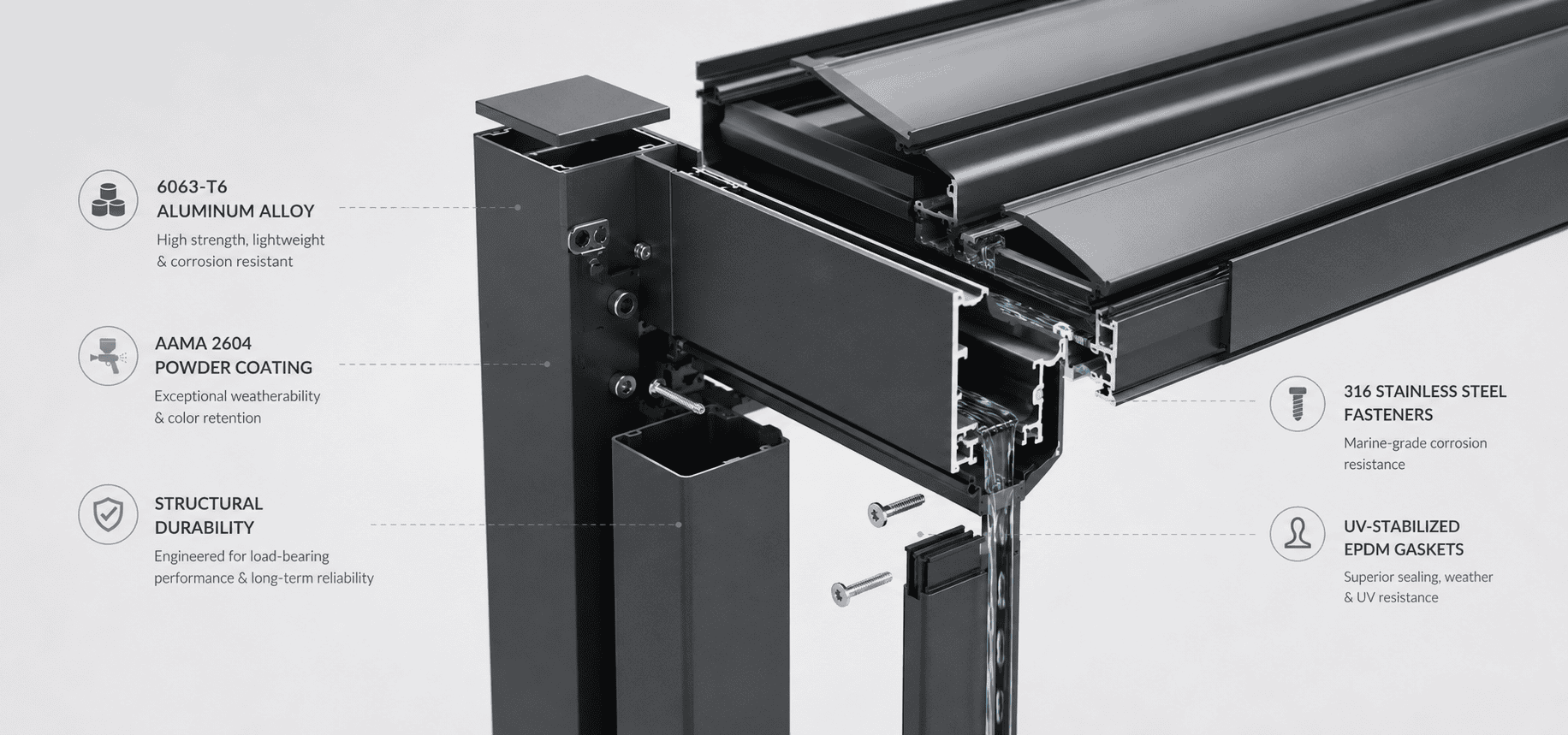

At the core of our pergola system is 6063-T6 aluminum alloy - selected for its optimal strength-to-weight ratio and corrosion resistance. Every extrusion undergoes spectrographic analysis to verify alloy composition before production. Wall thicknesses of 2.0-3.0mm provide structural rigidity without excess weight. Marine-grade 316 stainless steel fasteners are used throughout, ensuring decades of rust-free operation even in coastal environments.

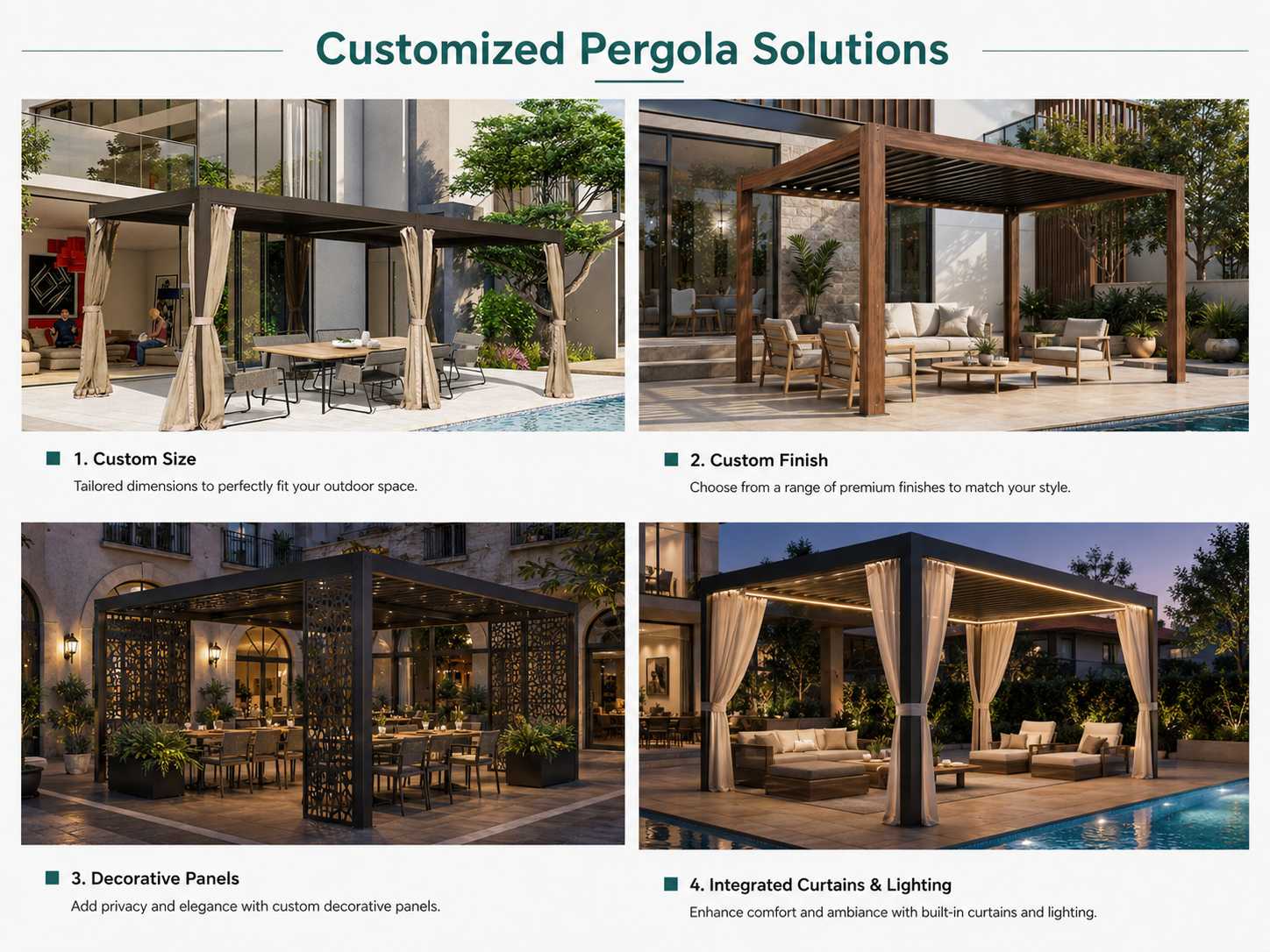

Every project is unique. We offer comprehensive customization across every dimension of the system.

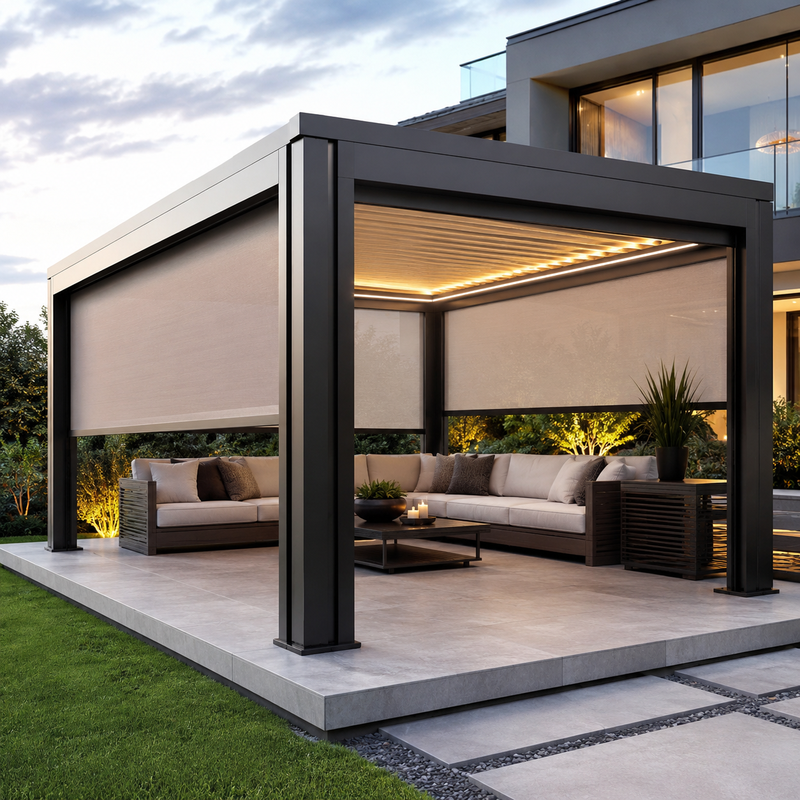

Compatible add-ons that extend functionality - climate control, privacy, lighting, and smart automation.

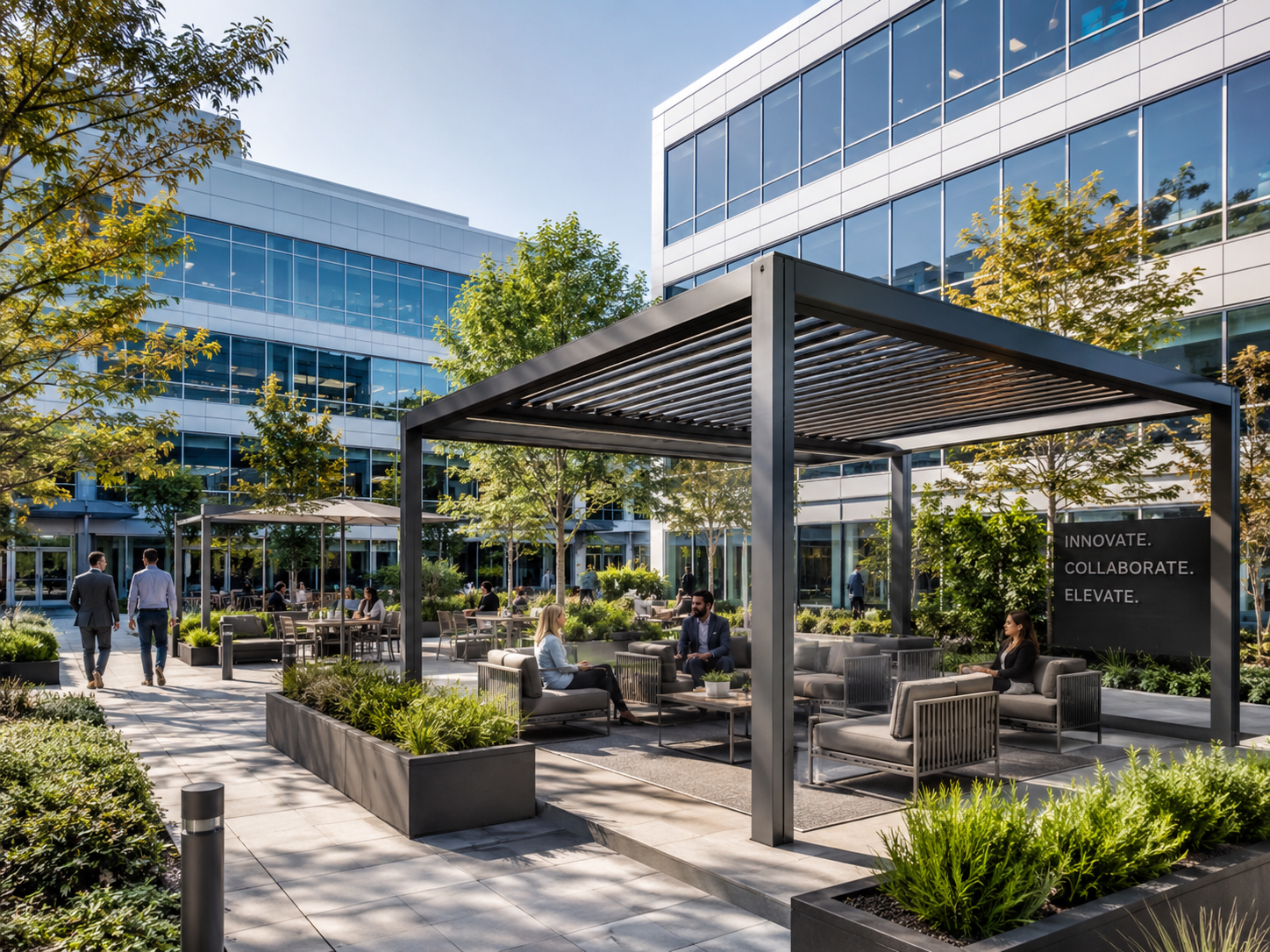

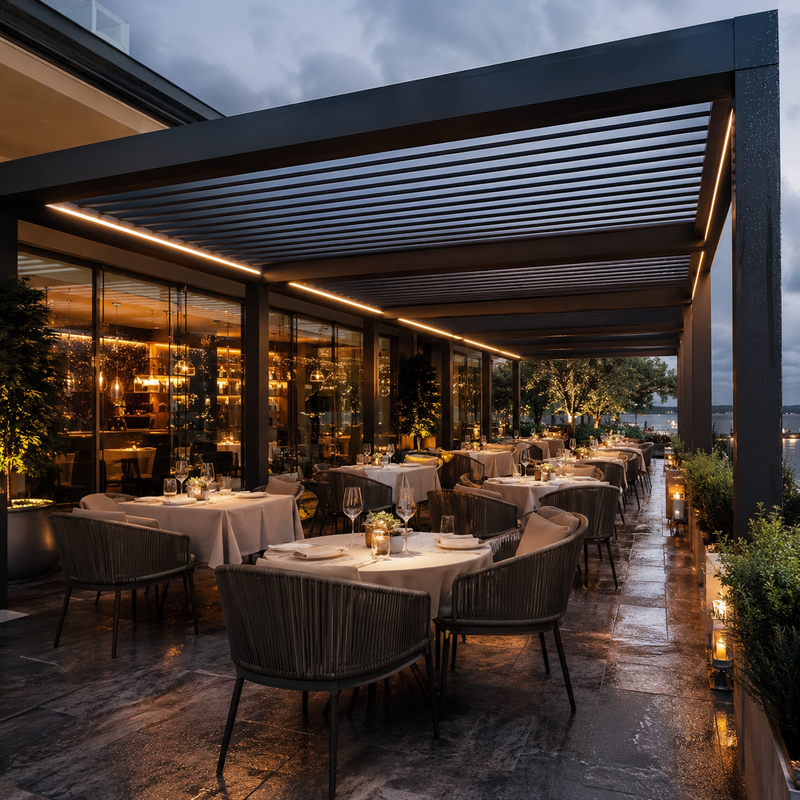

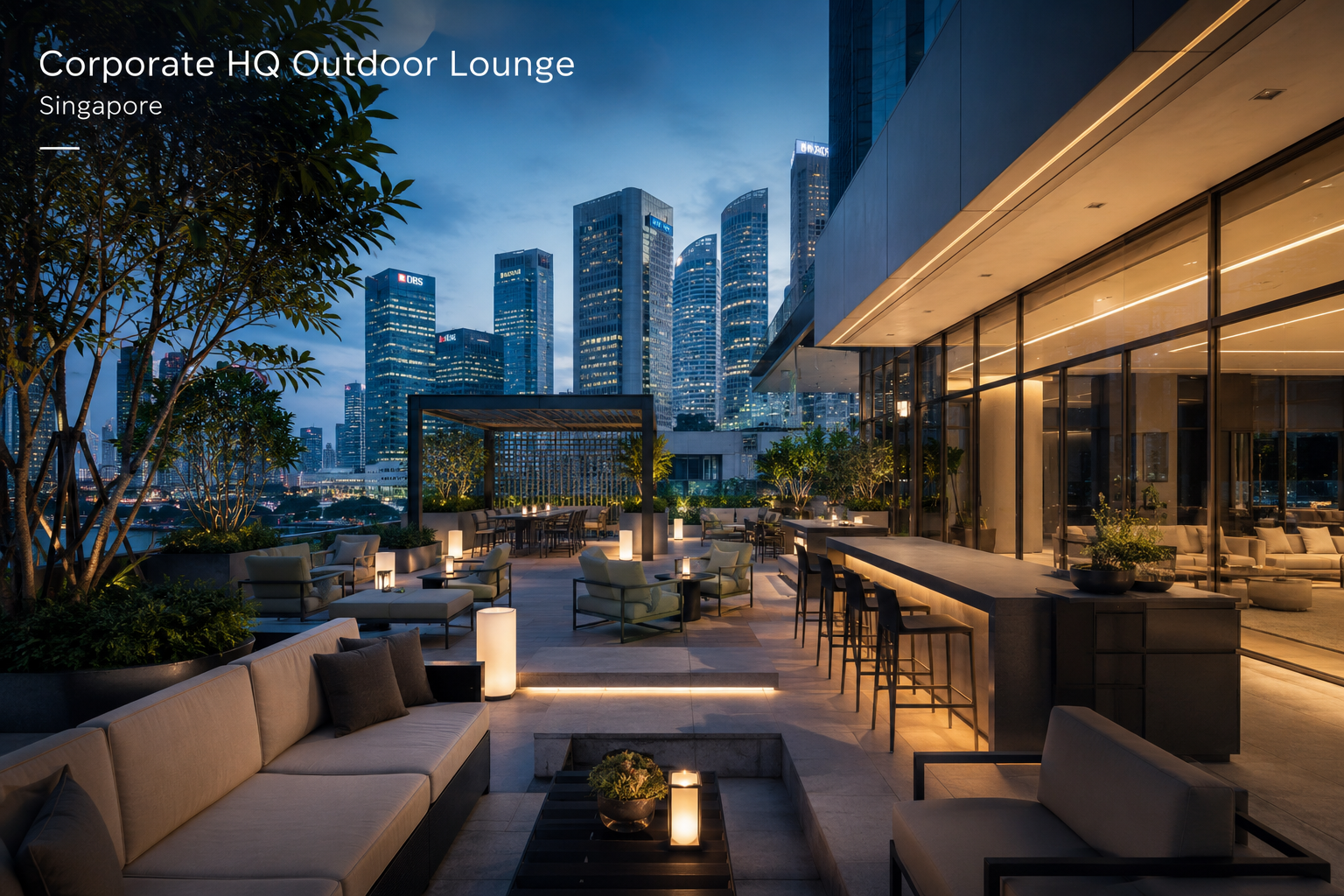

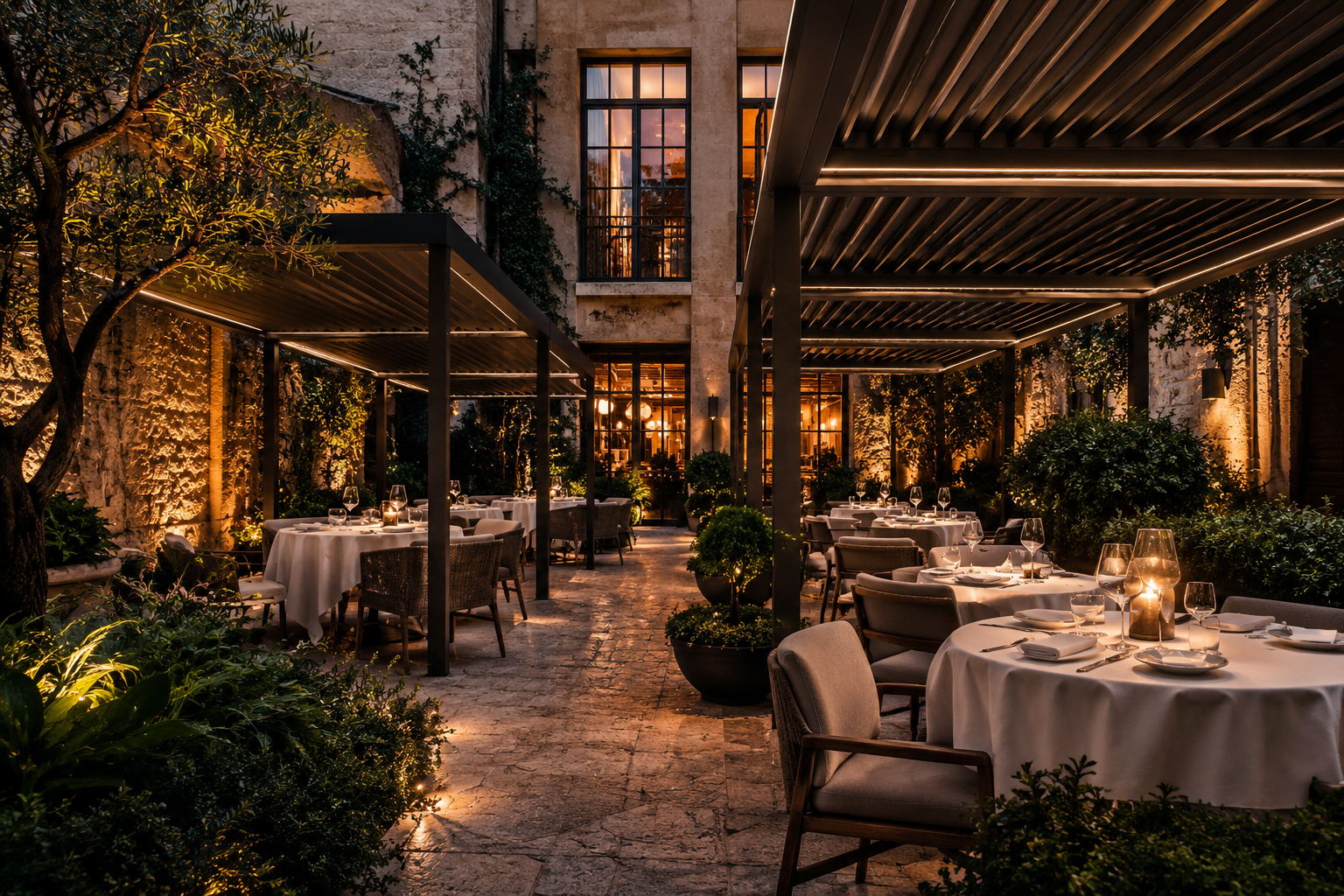

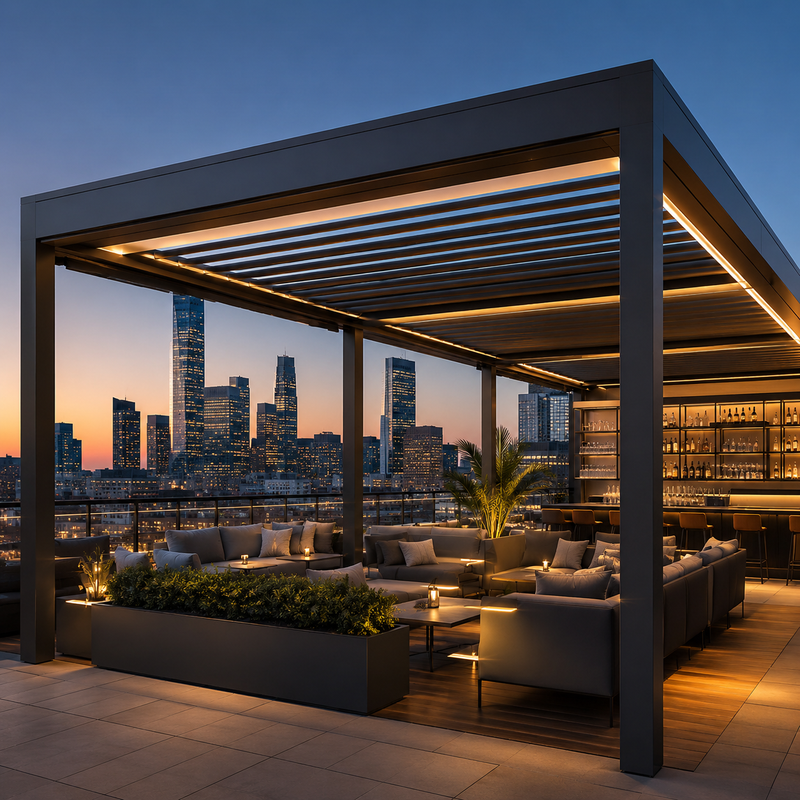

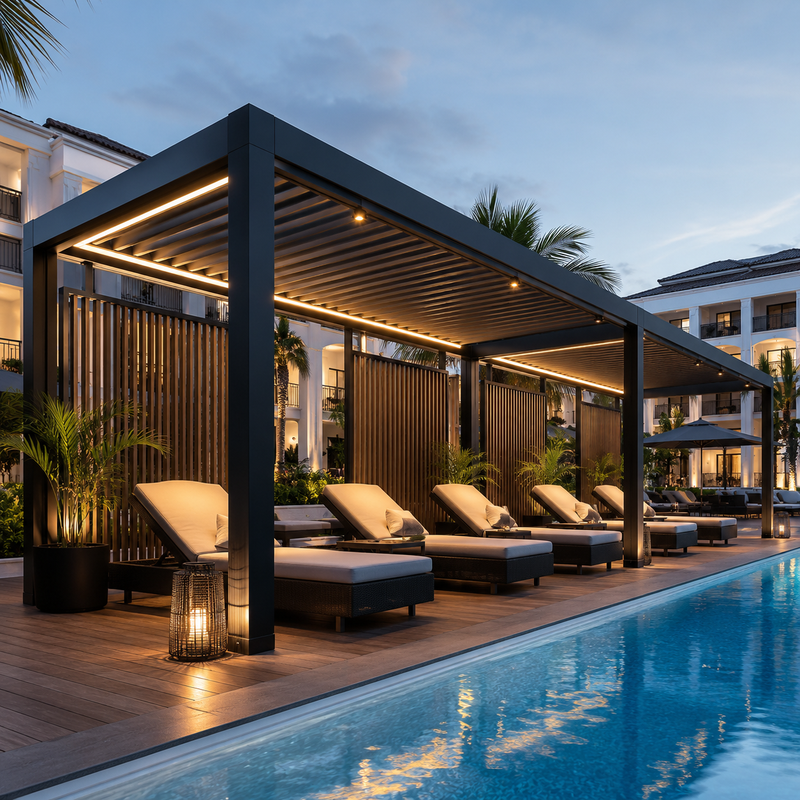

Designed for diverse environments - from intimate residential settings to high-traffic commercial venues.
| Frame Material | 6063-T6 Aluminum Alloy |
|---|---|
| Louver Blade Material | 6063-T5 Aluminum, Double-Wall Extrusion |
| Blade Rotation | 0-130 degrees (Motorized) |
| Blade Width Options | 130mm / 160mm / 200mm |
| Post Size | 120x120mm / 150x150mm / 200x200mm |
| Wall Thickness | 2.0-3.0mm (Profile-Dependent) |
| Surface Treatment | AAMA 2604 Powder Coating |
| Gutter System | Integrated Hidden Drainage, 120L/min Capacity |
| Motor | Tubular AC (Standard) / Somfy RTS / Dooya DC (Optional) |
| Wind Load Rating | EN 13561 Class 6 / ASCE 7-16 Compliant |
| Snow Load | 0.5 kN/m2 (Standard) / 1.0 kN/m2 (Reinforced Option) |
| LED | 24V IP67 Integrated Strip, RGB/Warm White 3000K |
| Warranty | 10 Years Structure / 5 Years Motor & Coating |
| Certifications | CE, EN 1090, SGS, TUV, AAMA 2604 |
Verified engineering data for structural specification and building code compliance.
Use one focused video to show the full installation workflow. The video slot uses Installation Step 1 media URL, while the other saved step fields remain untouched in the backend.
This video demonstrates the step-by-step installation of our pergolas.

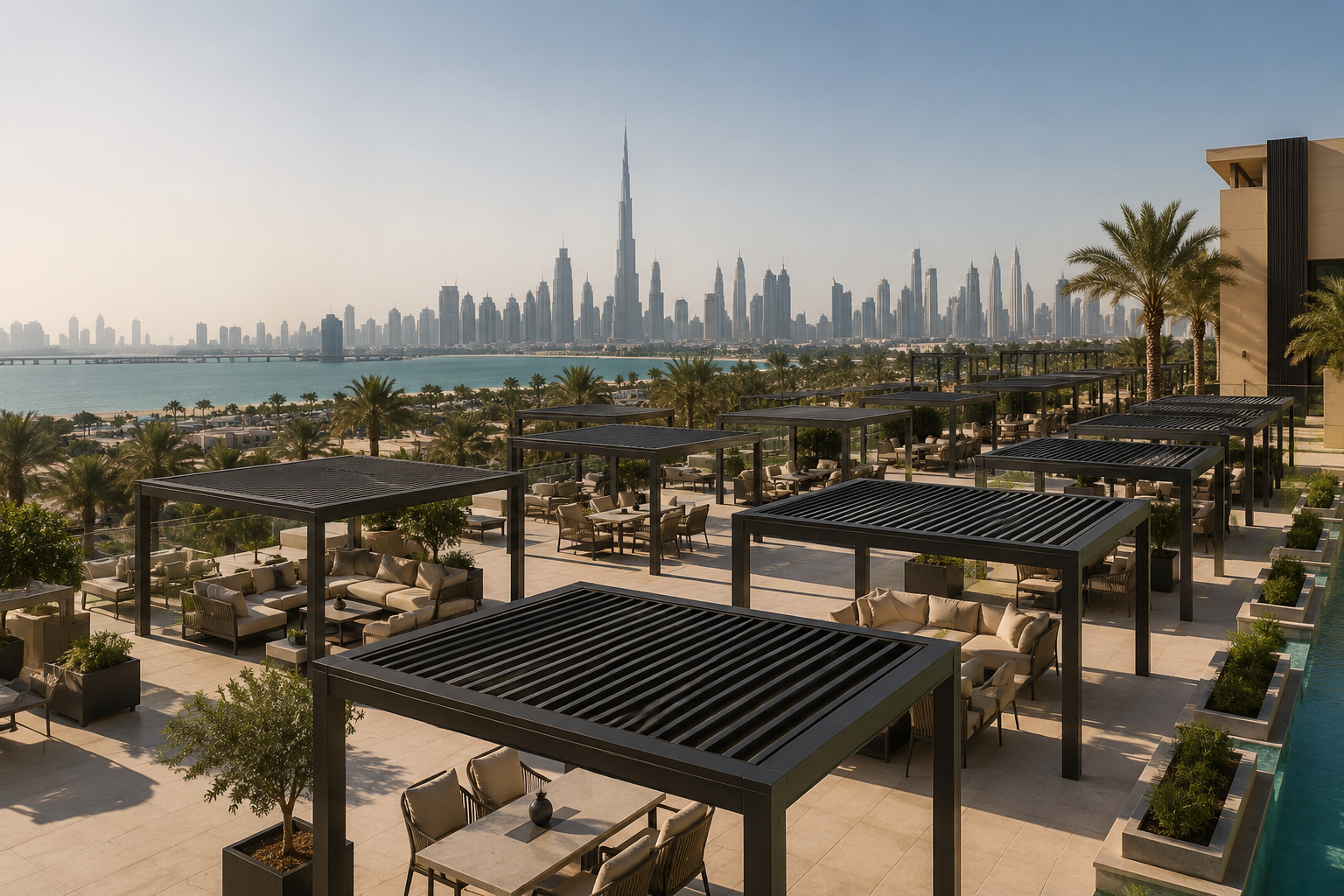

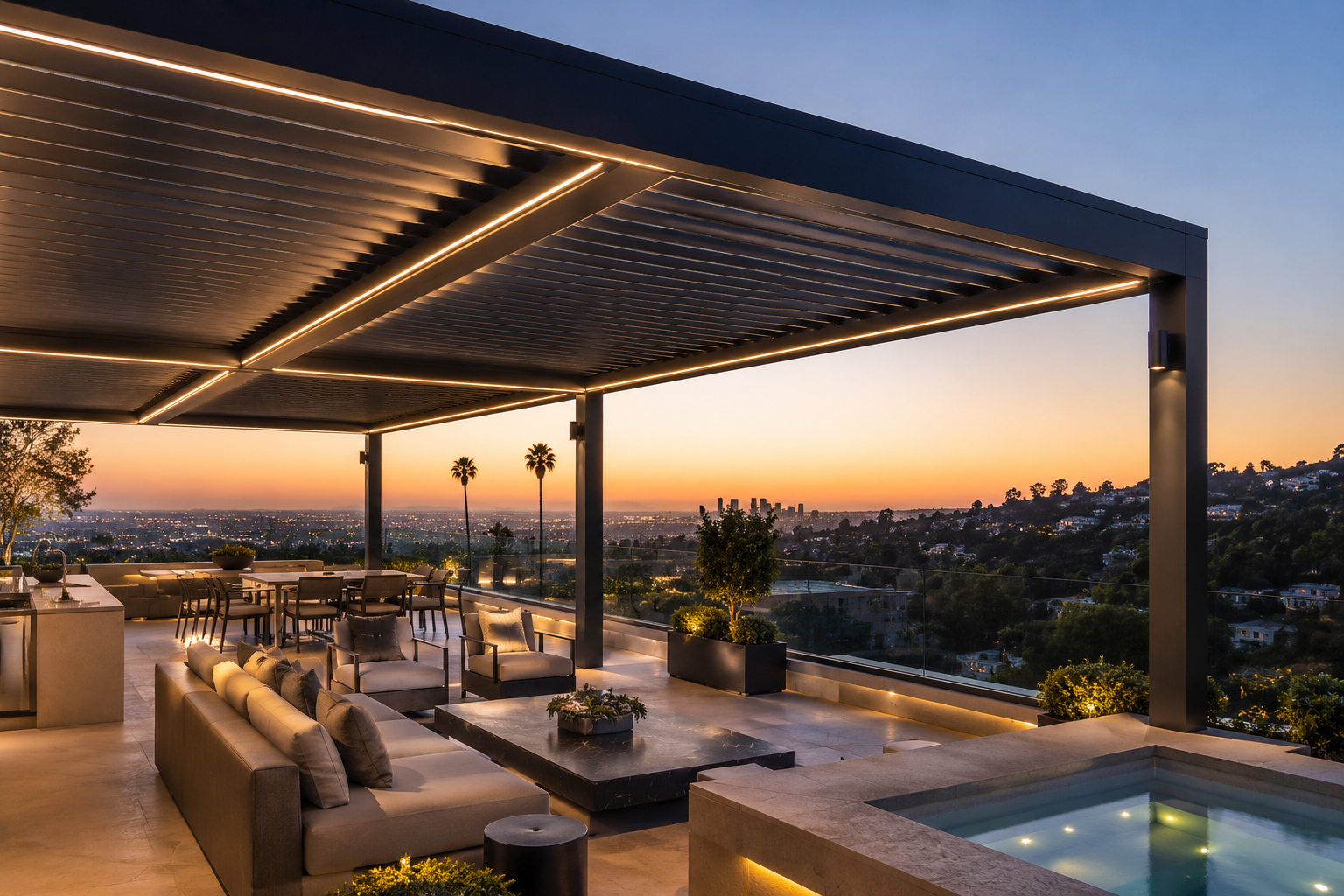

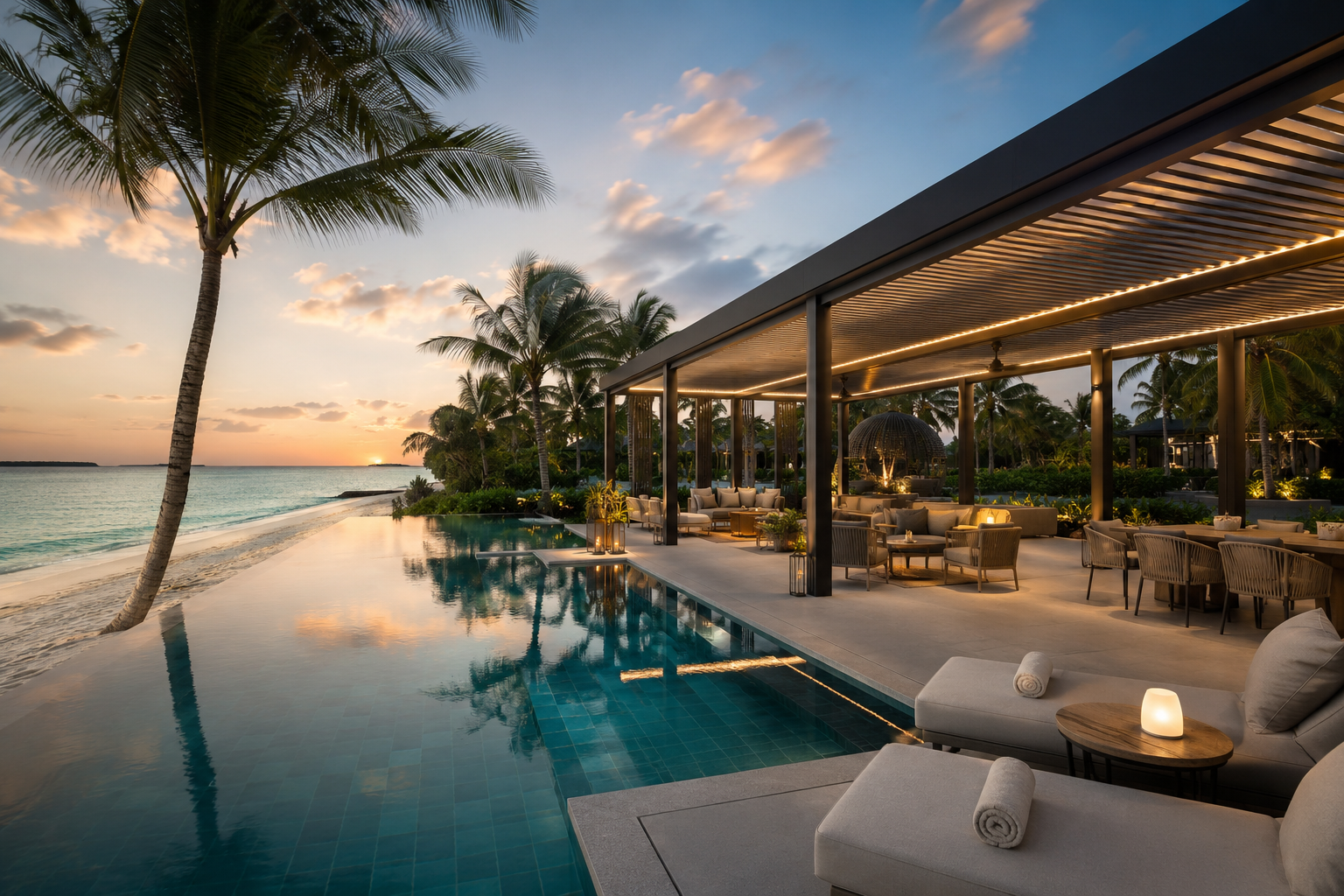

Trusted by architects, hotel groups, and property developers across 50+ countries.
Six reasons we're the preferred manufacturing partner for premium outdoor structures.
Two decades of engineering expertise in aluminum structures. 15,000 sqm facility with 6 automated production lines.
Projects delivered across Europe, North America, Middle East, Australia, and SE Asia. Logistics expertise for global shipping.
15+ structural engineers provide wind/snow load calculations, CAD drawings, and BIM files for your project specifications.
ISO 9001 certified. Spectrographic alloy verification, salt-spray testing, 20,000-cycle motor endurance tests on every batch.
Your brand on every box. Drop-tested export packaging. Barcode-labeled components matched to installation drawings.
Spare parts shipped within 48 hours. Technical video support library. Installation troubleshooting in English, French, German.
Standard orders ship within 25-35 days. Custom configurations may add 7-10 days. Express production available for project deadlines.
Yes. Width, projection, and post height are all customizable. Non-standard sizes are engineered and quoted per project - no minimum quantity for custom dimensions.
CE (EN 13561/EN 1090), SGS material testing, TUV motor safety, and AAMA 2604 coating certification. Additional country-specific certs available on request.
Flat-packed in reinforced export-grade plywood crates. Each component is barcode-labeled and matched to the installation drawings. 20GP/40HQ container optimization included.
Spare parts dispatched within 48 hours. Lifetime technical support via video call, email, or WhatsApp. 10-year structural warranty, 5-year motor and coating warranty.
Yes - the system is designed for professional installer assembly. Complete installation manual, CAD drawings, and video guides are provided. Most residential units install in 1-2 days with a 2-person team.
Yes. Custom packaging, branded installation manuals, and private-label product documentation are all available. MOQ applies for exclusive branding.
Somfy RTS, Dooya remote, Tuya WiFi, Alexa, Google Home, and Apple HomeKit via bridge. Rain sensor, wind sensor, and temperature auto-triggers included.
Share your project requirements and our engineering team will deliver a tailored proposal with technical drawings, pricing, and lead time within 24 hours.
